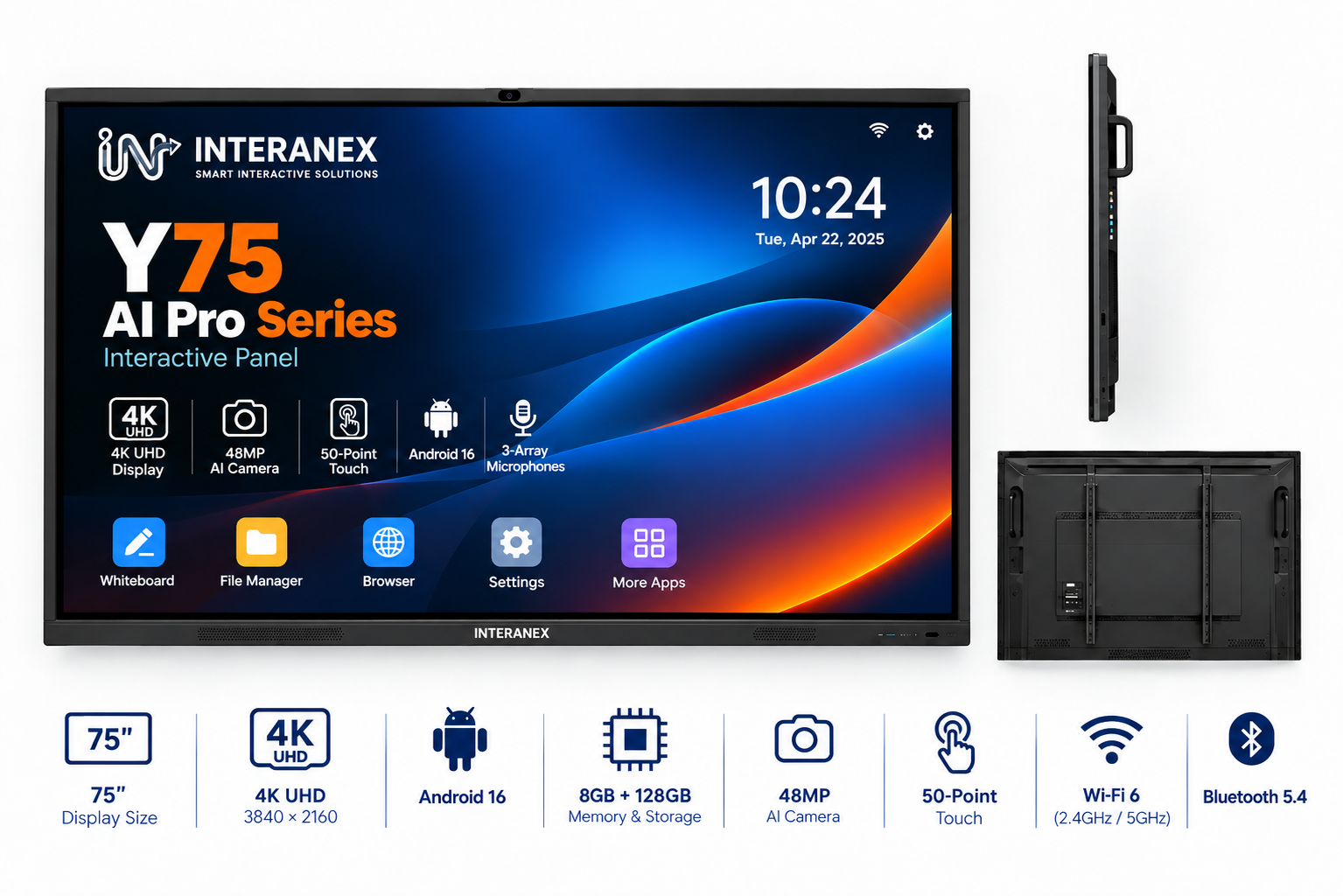

Y75 AI Pro Series
75" 4K Interactive Panel
A 75-inch 4K UHD interactive display featuring Android 16, the RK3576 platform, 60-point infrared touch (manufacturer specification; product image artwork says 50-point—confirm final SKU), a 48MP AI camera and built-in audio for classrooms, meeting rooms and collaborative environments.
Interactive Display for Learning & Collaboration
The Y75 AI Pro Series brings 4K visuals, touch interaction, integrated conferencing hardware and Android-based computing together in one 75-inch display.
Built for Everyday Collaboration
Use the 75-inch 4K UHD screen for classroom lessons, training, presentations, brainstorming and meetings. The infrared touch system supports on-screen writing and annotation, while the anti-glare tempered glass provides a durable writing surface.
Android 16 and the RK3576 octa-core platform provide the built-in system environment. The standard configuration includes 8GB RAM and 128GB storage, with an optional 16GB + 256GB configuration.
Integrated Audio & Video
The display includes a 48MP AI camera, an 8-array microphone system and dual 20W speakers. Camera functions listed in the supplied specification include autofocus, auto white balance, backlight compensation and 3D noise reduction.
Wi-Fi and Bluetooth support wireless connectivity, while the listed HDMI, USB, Type-C, Ethernet and audio interfaces support compatible external devices. Check the final port configuration before placing an order.
Designed for Interactive Collaboration
Professional display technology with integrated touch, camera, audio and smart system features.
4K UHD Display
75-inch LCD panel with 3840 × 2160 4K UHD resolution and a 16:9 aspect ratio.
60-Point Touch
Infrared touch supports 60 points on Android and 60 points on Windows.
48MP AI Camera
AI camera with autofocus, auto white balance, backlight compensation and 3D noise reduction.
Android 16
RK3576 Octa-Core 64-bit processor with 8GB memory and 128GB storage.
8-Array Microphones
Built-in 8-array microphones with a specified pickup distance of 0–8 metres.
Flexible Installation
Supports wall-mounted installation and mobile stand installation.
Y75 AI Pro Series Specifications
Technical specifications for the 75-inch Y75 AI Pro Series interactive panel. The supplied product artwork shows 50-point touch and 3-array microphones, while the manufacturer specification sheet lists 60-point touch and 8-array microphones; confirm the final configuration with the supplier before publishing.
| Specification | Y75 AI Pro Series |
|---|---|
| Model | Y75 AI Pro Series |
| Display Size | 75 inch |
| Panel Brand | BOE |
| Resolution | 3840 × 2160 - 4K UHD |
| Brightness | ≥350 cd/m² |
| Contrast Ratio | 1200:1 Typical |
| Viewing Angle | 178° / 178° |
| Refresh Rate | 60Hz |
| Response Time | 6–8 ms |
| Operating System | Android 16 |
| CPU | RK3576 Octa Core 64-bit, up to 2.2GHz |
| GPU | Mali-G52 MC3 @ 1GHz |
| Memory | 8GB |
| Storage | 128GB |
| Optional Memory & Storage | 16GB RAM + 256GB storage |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, 2.4GHz / 5GHz |
| Microphone Pickup Distance | 0–8 metres (as listed in the supplied specification) |
| Effective Display Area | 1649.66 × 927.97 mm |
| Net Weight | 52 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Listed Operating Life | ≥50,000 hours |
| Optional Memory & Storage | 16GB RAM + 256GB storage |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, 2.4GHz / 5GHz |
| Microphone Pickup Distance | 0–8 metres (as listed in the supplied specification) |
| Effective Display Area | 1649.66 × 927.97 mm |
| Operating Life | ≥50,000 hours (manufacturer-listed) |
| Net Weight | 52 kg |
| VESA Mounting | 600 × 400 mm |
| Standby Power | ≤0.5W |
| AI Camera | 48MP |
| Microphones | 8 Array Microphones (manufacturer specification; product image artwork says 3-array—confirm final SKU) |
| Touch Type | Infrared Touch |
| Touch Points | 60-point infrared touch (manufacturer specification; product image artwork says 50-point—confirm final SKU) |
| Touch Accuracy | ±1mm |
| Bluetooth | Bluetooth 5.4 |
| Speakers | 20W × 2 |
| Power Input | AC 100V-240V / 50-60Hz |
| Total Power | ≤220W |
| Standby Power | ≤0.5W |
| VESA | 600 × 400mm |
| Bare Metal Size | 1705 × 1027.8 × 81.4mm |
AI Camera & Audio
- 48MP AI Camera
- Autofocus
- Auto white balance
- Autofocus
- Auto white balance
- Backlight compensation
- 3D noise reduction
- 8-array microphones
- 0–8M pickup distance
Connectivity & Touch
- HDMI IN × 1
- HDMI OUT × 1
- USB 2.0 × 2
- USB 3.0 × 1
- USB touch interface
- Type-C interface
- RJ45 Ethernet
- Audio Line In × 1
- Audio Line Out × 1
- Front interface: 2 × USB, Type-C, TP OUT and HDMI IN
- Wi-Fi 2.4GHz / 5GHz
- Bluetooth 5.4
Y75 AI Pro Series FAQs
Common questions about the Y75 AI Pro Series interactive panel.
What is the display size of the Y75 AI Pro Series?
The Y75 AI Pro Series features a 75-inch LCD display with 3840 × 2160 4K UHD resolution.
Does the Y75 support multi-touch?
Yes. The infrared touch system supports up to 60 touch points for interactive writing and collaboration.
Which operating system does the Y75 use?
The Y75 AI Pro Series specification lists Android 16 as its built-in operating system.
How much RAM and storage does the Y75 have?
The Y75 includes 8GB of memory and 128GB of built-in storage.
Does the Y75 have an AI camera?
Yes. It includes a 48MP AI camera with autofocus, auto white balance, backlight compensation and 3D noise reduction.
Does the Y75 include microphones?
Yes. The Y75 includes 8 array microphones (manufacturer specification; product image artwork says 3-array—confirm final SKU) with a specified pickup distance of 0–8 metres.
Can the Y75 be wall mounted?
Yes. The 75-inch model lists a 600 × 400 mm VESA mounting pattern and includes a wall bracket among the standard accessories. Confirm wall strength and installation requirements before mounting.
What connectivity options are available?
Listed interfaces include HDMI input and output, USB 2.0, USB 3.0, a USB touch interface, Type-C, RJ45 Ethernet, audio line-in and line-out, plus front-panel connections. Confirm the final port layout with the supplier before ordering.
What warranty is included with the Y75 AI Pro Series?
Warranty coverage depends on the supplier's sales terms. Contact the sales team to confirm the applicable warranty period, service coverage and after-sales support for your order.
